Heat Recovery System Improves EV Cabin Heating Efficiency

MAHLE is working with electric vehicle manufacturers to implement a cabin heat recovery system that lowers heating-related energy consumption in battery-electric vehicles, particularly under winter operating conditions. The cooperation focuses on integrating the HeatX Range+ system into existing vehicle HVAC architectures to improve thermal efficiency without compromising air quality or system performance.

Context of the Cooperation
MAHLE develops thermal and fluid management systems for passenger and commercial vehicles, while vehicle manufacturers are responsible for vehicle integration, validation, and series application. In electric vehicles, cabin heating can significantly reduce usable driving range at low ambient temperatures because thermal energy must be supplied electrically. Addressing this challenge requires close coordination between HVAC system design and vehicle-level energy management, making cooperation between system supplier and OEMs necessary.

Technical Solution and Responsibilities
The HeatX Range+ system is a heat recovery concept integrated into the vehicle air conditioning circuit. MAHLE provides the system design, HVAC component engineering, and refrigerant-side integration. Vehicle manufacturers adapt the system to their specific HVAC layouts, control strategies, and packaging constraints.

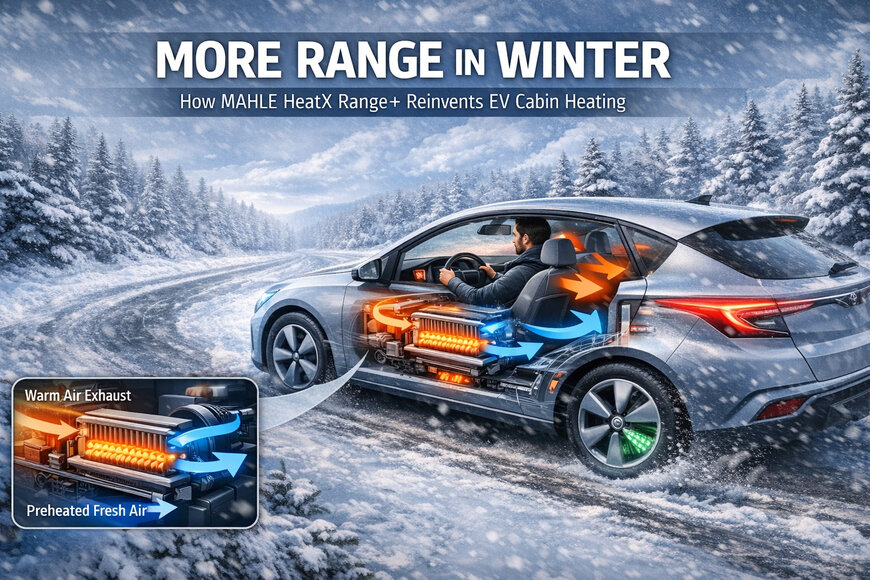

Technically, the system uses the air conditioning evaporator to recover thermal energy from cabin exhaust air. As warm exhaust air passes through the evaporator, it transfers heat to the refrigerant. This recovered energy is then released to the incoming fresh air stream before it enters the cabin. By preheating the intake air, the system reduces the electrical heating load required to maintain cabin temperature.

The system is designed for refrigerant R1234yf and can be adapted to alternative refrigerants with minor changes. According to MAHLE, the layout does not negatively affect air flow rates or acoustic behavior of the HVAC system.

Deployment and Integration
The modular design allows integration into existing electric vehicle platforms without major changes to the HVAC architecture. OEMs can incorporate the system during vehicle development or platform updates, using standard interfaces within current climate control units. MAHLE supports system calibration and validation, while manufacturers conduct vehicle-level testing and homologation.

Testing conducted on a mid-size electric vehicle demonstrated system performance at an ambient temperature of −7 °C and a cabin setpoint of 20 °C.

Applications and Use Cases
The system targets battery-electric passenger vehicles operating in cold and temperate climates. Key use cases include daily commuting and long-distance winter driving, where HVAC energy demand has a measurable impact on usable range. Continuous fresh air supply also supports stable window demisting and interior air quality.

Results and Expected Impact
Vehicle testing indicates that HeatX Range+ can reduce HVAC energy demand by approximately 20 percent compared to conventional exhaust air systems, translating into a range increase of nearly 10 kilometers under winter conditions. These gains result from reduced electrical heating load rather than changes to battery capacity, supporting efficiency improvements through system-level thermal management.
