Schaffner’s new EMC Solution for Residential EV-Charging Stations

Designers of EV charging stations can reduce the cost of complying with regulations by using chokes that meet their requirements.

E-mobility Growth
E-mobility is a rapidly growing market and regulatory compliance is essential for charging stations. Development of the new RV Series choke from Schaffner is backed by the company’s decades of expertise as a global leader in electromagnetic solutions that minimize electromagnetic interference (EMI) and filter out noise. The new choke has been created to offer superior levels of performance when dampening and attenuating noise.

Offering Choice
By offering a broad range of specifications and performance choices, the RV choke enables designers to minimize costs. Costly over-design can be avoided through being able to select a solution that mitigates noise just below regulatory limits.

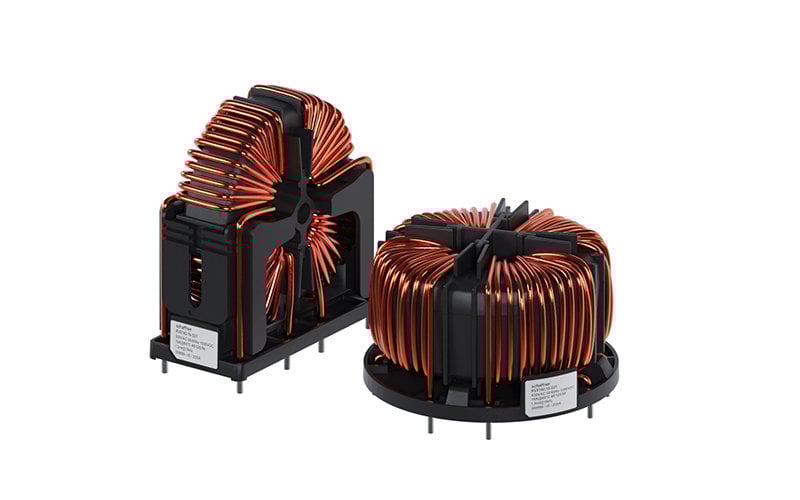

For different environments, the new RV Series offers the choice between ferrite (RV8140 & RV8540) and nanocrystalline (RV8141 & RV8541) core technology. Each current rating comes with eight different performance/size options, four of them designed for vertical (RV8540) and four for horizontal (RV8140) mounting.




AC and DC Applications
The four windings of the new choke are typically installed as three phases and neutral. For DC applications on the vehicle side the same choke is used – two windings of the choke are connected in series providing very high attenuation and protecting the vehicle from disturbances.

The new RV Series is designed for power ratings up to 30 kW with rated currents from 16 A to 50 A per phase at 60 °C ambient temperature. In terms of certification, the RV series complies with UL/IEC 60938-1/-2 and UL 1446. Other features of the new choke include low magnetic leakage flux, excellent winding insulation and low parasitic capacitance.

Residential Charging Market Demand
“When designing residential EV charging stations, it is vital to be able to identify any potential electromagnetic compatibility (EMC) challenges and to deal with them as early as possible in the design process. This sector of the EV charging market is especially vibrant, so we are delighted to be offering a new and smaller product for power ranges up to 30 kW,” Felix Wedel, product manager at Schaffner, explains.
