Murata develops high-voltage capacitors for improved electric vehicles
Rapid development of hybrid and battery electric vehicles has revolutionized the automotive industry, replacing internal combustion engines and presenting challenges to the industry.
Brands, designers, and suppliers all need to think more freely and move more quickly to keep up. Even simple components such as capacitors are playing a key enabling role in ensuring a safe transition to EVs.
One of the most striking recent developments has been an increase in the operating voltage of EV battery packs, from the 350 – 400V DC that is common today to the 800V DC packs used in the Porsche Taycan and the 900V DC pack used in the Lucid Air sedan. The reason for doing this is to reduce I2R losses in these vehicles’ wiring harnesses. If you double the pack voltage for an EV from 400V to 800V, you halve the current needed to deliver the same amount of power and quarter the energy lost due to resistive heating.
Lower currents mean lighter wiring looms, which reduces vehicle mass and so boosts range. When it comes to charging times, higher battery pack voltages also make it easier to build more powerful chargers. Some of today’s most powerful chargers already use fluid coolants in their charging cables to combat resistive heating at very high currents. This requirement would be reduced with higher-voltage, lower-current charging stations.
The high-voltage design challenge
Battery packs are made up of hundreds of individual cells, each producing around 4V when fully charged, wired in series to produce the requisite pack operating voltage. It’s the design of the pack, and the battery management system (BMS) that controls how each cell in it is charged and discharged, which enables faster charging. The other gating factor for faster charging is the availability of key components, such as safety capacitors, which have high enough operating-voltage ratings to implement it and meet automotive safety requirements.
The evolution of the necessary components is well underway in the semiconductor industry, with the development of 1200V silicon IGBTs and the introduction of silicon carbide MOSFETs. All these parts have breakdown limits which, if reached, can cause the device to fail unpredictably. Breakdown voltages are usually specified at operating temperatures of 25C but may be reduced at lower temperatures. Component developers also need to accommodate the fact that the safety of their components will be tested at considerably more than their rated operating voltages for short periods and consider measurement-error margins.
Passive components makers also need to minimize the ageing of their components in service, avoid the ingress of moisture in the harsh operating conditions of a car, and avoid ‘creep’, that is the tendency for currents to stray across component casings and printed circuit boards (PCBs) when very high voltages are present.
An example: the capacitor
Capacitor makers are already having to contend with these issues. The powertrains of EVs need a variety of safety features, including safety capacitors to act as common-mode filters and circuit isolators. These devices, such as the EVA series from Murata, are either used across power lines (so-called class X applications) where a failure would not cause an electric shock, or between the line and the vehicle’s chassis (class Y) in a configuration that, in the event of a short circuit, could cause a fire or electric shock.

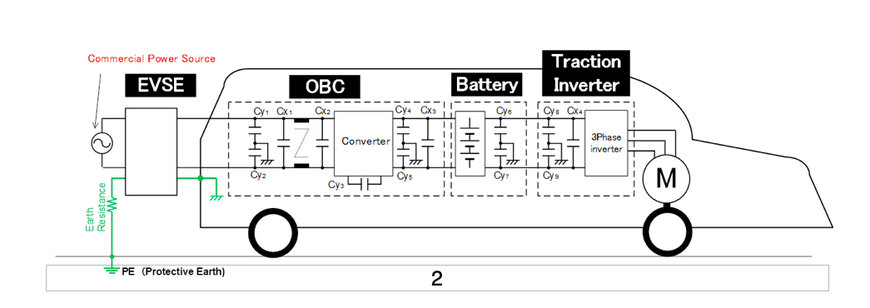

Shows the use of safety capacitors in an onboard charger, with two devices (CY1 and CY2) acting as Y capacitors in the primary side of the circuit, two more (CY4 and CY5) taking the same role in the secondary, a two more pairs (CY6 and CY7) performing the same function for the battery (CY6 and CY7) and the traction inverter (CY8 and CY9). Capacitors CX1 – 4 perform smoothing functions throughout the powertrain.
EV makers currently use multiple lower-voltage capacitors – often bulky, through-hole mounted film capacitors – to cope with the very high operating voltages of the latest EVs. These devices work but need special handling during manufacture. The use of multiple devices to emulate the characteristics of a single higher-voltage device can also lead to higher equivalent series resistance and equivalent series inductance for the composite device than for a monolithic solution, undermining their ability to suppress electrical noise.

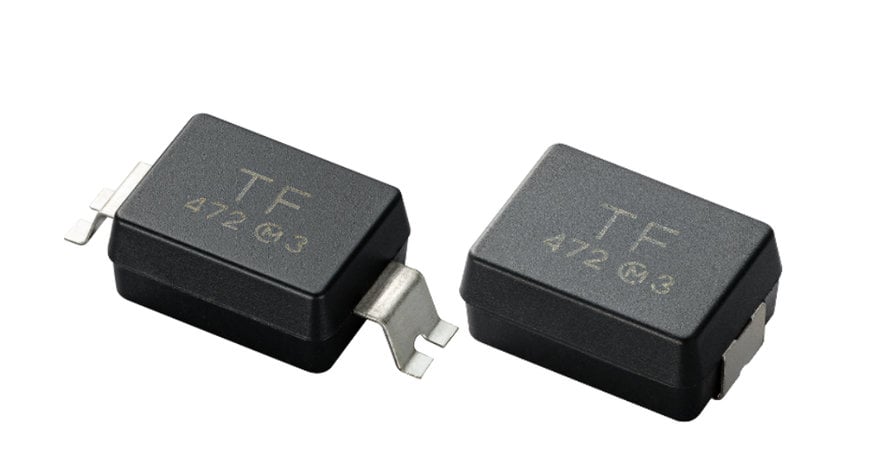

To address these issues, Murata has developed a range of surface-mountable multilayer ceramic capacitors (MLCCs) with peak DC operating voltages of 1500V and peak AC operating voltages of up to 305Vrms. The EVA capacitors offer a creep distance of 6 and 10mm, making arcing less likely than in other devices with creep distances of just 4mm. Using Murata’s EVA parts also saves PCB area and assembly costs and should improve manufacturing yields. The high DC and AC operating voltages of the parts give them the headroom to work in today’s EV drivetrains, and to take a role in an emerging class of vehicles that are using 800V DC and 900V DC battery packs to reduce resistive losses.

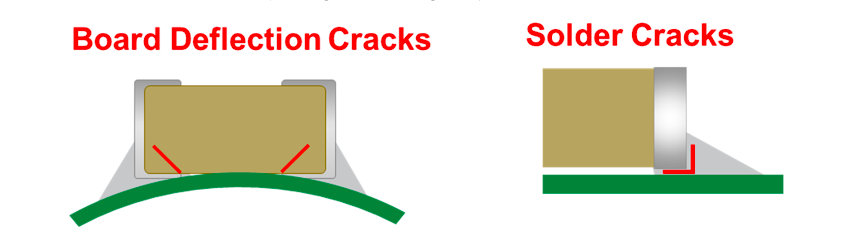

Common forms of mechanical failure for MLCCs due to PCB flexure
The EVA devices join Murata’s range of safety capacitors, which includes the DE6 parts offered in a through-hole mounting package and the surface-mountable KCA parts, which have a creepage distance of 4mm. Although the EVA parts are longer to accommodate the increased creepage distance, they retain the mechanical strength of the KCA parts because they have metal terminations and an internal design that focuses on electrical strength. The result is a range of parts that will withstand cracks within the device due to PCB flexure and will resist solder cracking between the device and the board more effectively than devices without metal terminations (See Figure 3 and Figure 4).

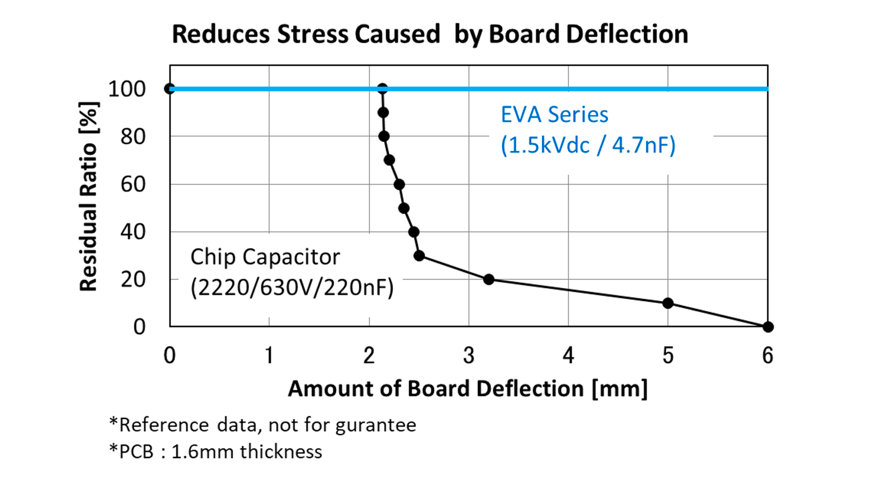

Comparing the robustness of ceramic capacitors with and without metal terminations.
Meeting standards
Parts for use in automotive applications must meet the industry’s AEC-Q200 quality standards, conform to the requirements of RoHS legislation, offer operating temperatures of up to 125C, and show they can deal with moisture effectively over the long term. The JEDEC standards body defines Moisture Sensitivity Levels at which a component could be damaged during reflow soldering due to the expansion of moisture trapped within the part.

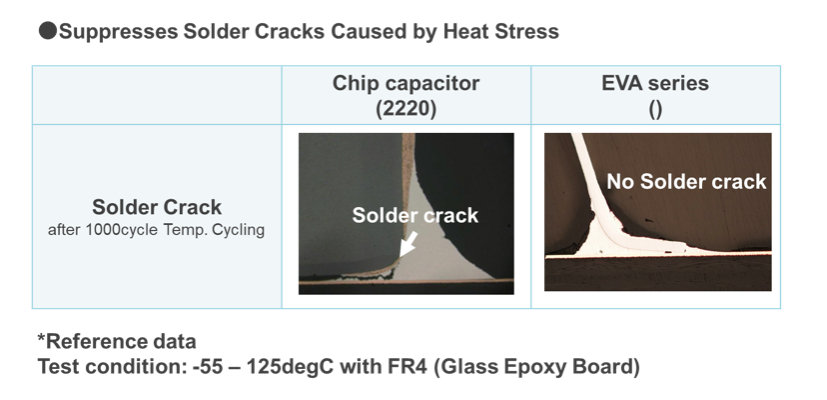

These cross-sections show how the EVA series capacitors reduce the effects of thermal cycling on critical solder joints.
Parts that need to have the lowest risk of this happening must be baked for a fixed period to dry them out, and then supplied on a tape reel in an aluminium pack with a desiccant. The EVA parts will meet MSL3, which means that they have been tested to show that they will not crack under MSL2 conditions following the JEDEC standard. Murata will also recommend the right temperature and humidity for the parts’ storage.
Conclusion
The rapid development of EVs is completely reshaping how we think about vehicle design. To keep up with the feverish pace of EV development, vehicle makers are having to adapt existing technologies, techniques, and components to their needs, while suppliers rush to produce parts optimised for these new use cases. Murata is already well advanced with product development for the EV market, as shown by the introduction of the EVA MLCCs. It will be interesting to see how EV designs evolve once the industry moves from using the components it can get to using the components it wants – like the Murata EVA MLCCs.
