ZF LIFETEC Unveils Advanced Multi Airbag Concept For Reclined Seating
The innovative four airbag system enhances safety in comfortable reclined positions by optimizing occupant stabilization and significantly reducing the risk of dangerous submarining.
www.zf.com
ZF LIFETEC has engineered an interconnected four-airbag safety system specifically configured to maintain occupant restraint when vehicle seats are placed in reclined comfort positions. This passive safety technology addresses altered occupant biomechanics during frontal impacts, providing localized stabilization for the head, pelvis, and lower extremities across passenger vehicle platforms.
Biomechanical Challenges of Reclined Seating Positions
Standard automotive safety systems calibrate restraint deployment based on an upright occupant posture. When seatbacks are significantly reclined, the physical relationship between the occupant, the seatbelt, and the vehicle interior changes. In a frontal impact, a highly reclined position alters force distribution, increasing the risk of the occupant sliding underneath the lap belt segment. This kinematic behavior can cause the restraint belt to migrate from the pelvic bone into the soft abdominal tissue, increasing the severity of internal injuries.
Furthermore, greater physical distance between the occupant's upper body and the steering wheel or instrument panel delays the precise moment of airbag engagement. The absence of solid foot contact against the vehicle floor pan also permits uncontrolled lower extremity movement, which elevates the probability of knee, ankle, and foot collisions with structural elements like the pedal box.
Adaptive Volume and Kinematic Regulation Mechanisms

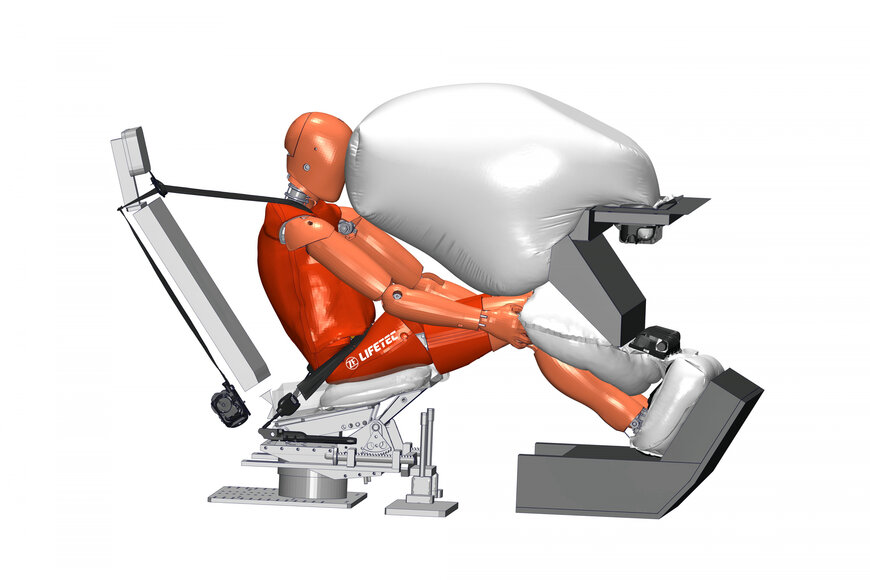

To mitigate these injury mechanisms, the system deploys four discrete airbag modules that function as a unified occupant restraint network:
- Seat Ramp Airbag: Positioned beneath the lower seat cushion fabric, this module inflates during an impact to alter the seat geometry. By creating a physical wedge, it limits forward pelvic travel and prevents the occupant from slipping beneath the lap belt.
- Dual Contour Knee Airbag: Located in the lower dashboard zone, this module deploys to stabilize the knees and thighs. The inflation volume fluctuates dynamically based on the specific seatback angle, utilizing a lower volume for upright positions and an expanded volume for reclined positions to optimize pelvic retention.
- Active Heel Airbag: Installed within the footwell floor structure, this unit secures the lower heels. By establishing a fixed anchor point for the feet, it prevents the legs from shifting forward or upward, which preserves the intended knee geometry and reduces structural pedal impact hazards.
- Dual Contour Airbag: Housed inside the steering wheel hub and the passenger-side instrument panel, this module alters its final expansion volume based on calculated upper body distance, deploying a larger chamber volume when the seat is reclined to optimize kinetic energy absorption.
Sensor Integration and Deployment Logic
The control architecture governing deployment timing and inflation volume relies on an adaptive algorithm. This system processes real-time data feeds from interior digital cameras, seatbelt webbing extraction sensors, seat track position parameters, and potentiometer-based seatback angle sensors. This integrated data stream allows the safety algorithm to calculate the exact spatial coordinates of the driver and passenger, customizing the deployment strategy to match the exact posture of each occupant at the moment of impact. The complete module network is engineered to reach series production readiness by 2028.
Additional Context: Technical Specifications and Competitive Benchmarking
The transition toward automated driving systems has prompted multiple tier-one automotive suppliers to develop adaptive passive safety solutions for non-traditional seating postures. In competitive benchmarking, the ZF LIFETEC system presents distinct architectural differences compared to alternative approaches in the industry.
Regarding the primary kinematic control method, the ZF LIFETEC four-module system relies on active seat pan geometry modification via the Seat Ramp Airbag, whereas competing pre-safe and adaptive concepts frequently use active seat fabric pretensioning or pyrotechnic mechanisms to physically tilt the entire seat pan.
For lower extremity stabilization, ZF LIFETEC introduces direct active footwell inflation through the Active Heel Airbag, while alternative industry concepts rely primarily on extended lower dashboard knee bags.
Volume adaptation control in the ZF LIFETEC architecture is managed through variable chamber expansion dictated by multi-sensor telemetry, contrasting with common competitive methods that utilize multi-stage inflation valves for pressure regulation.
Finally, in terms of target integration timelines, ZF LIFETEC has specified series production availability for 2028, whereas various proprietary competitive implementations are currently in production.
While alternative configurations often utilize pyrotechnic mechanism adjusters to physically tilt the entire metallic seat structure backward during a crash event, this approach requires substantial structural reinforcement of the seat tracks to withstand the localized rotational forces. The deployment of a dedicated airbag beneath the seat cushion fabric offers an alternative path to manage pelvic displacement without adding significant mechanical mass to the seating structure. Additionally, while standard knee airbags focus exclusively on upper tibia deceleration, the integration of a specialized footwell heel module addresses lower extremity kinematics at extended leg reaches common to autonomous driving concepts.
Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
