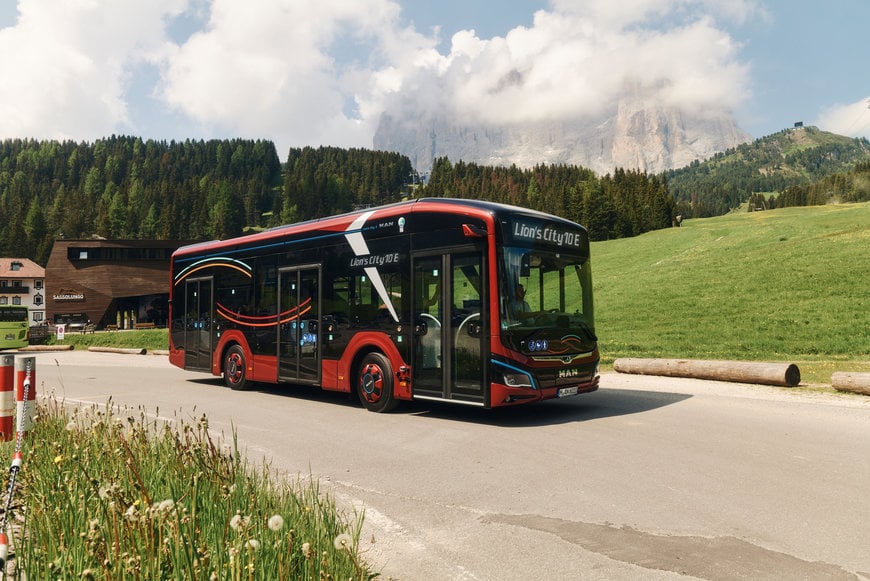

ALL-ELECTRIC MAN LION’S CITY 10 E MASTERS FIELD TEST IN THE DOLOMITES

MAN is pushing ahead with its electrification strategy. Across Europe, the company’s e-buses are on the line, with well over 1,000 vehicles already ordered in total.

Short wheelbase and small turning circle
With a length of 10.5 metres, a wheelbase of 4.4 metres and a record-breaking turning circle of 17.2 metres, the “midibus” is made for the narrow and winding roads in the South Tyrolean mountains. Uphill, the electric bus, equipped with five battery packs on the roof, pulls relentlessly and whisper-quietly, thanks to the immediate full torque. When going downhill, plenty of energy flows back into the bus thanks to recuperation. The MAN Lion’s City 10 E is fitted with the company’s tried-and-tested lithium-ion batteries. There is room for four or five battery packs on the roof of the bus. When fully loaded, 400 kilowatt-hours of energy are available. The bus then has a range of up to 300 kilometres, delivers a peak output of 240 kW and a maximum torque of 2,100 Newton-metres. A maximum of 33 people can be seated in the e-bus, up to a total of 80 passengers. The new “midibus” is powered by the same MAN electric central engine as the other Lion’s City E models.

Good chassis set-up, direct steering behaviour

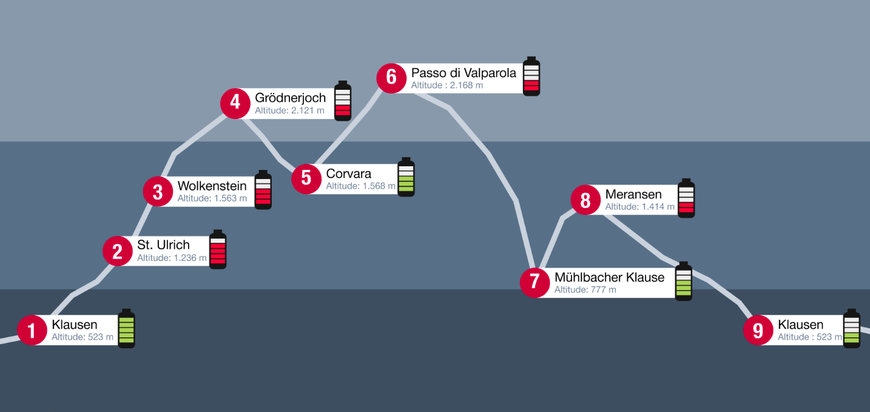

During the field test, the vehicle travels over countless hairpin bends into the Gardena Valley, up to the Gardena Pass, on to the Valparola Pass, picturesque Meransen and, after a short detour over the Brenner Pass, back to the starting point in Klausen. The manoeuvrability of the MAN Lion’s City 10 E is due not only to its short wheelbase and small turning circle, but also to its sophisticated chassis with independent suspension and 56-degree steering angle. “The excellent chassis set-up, direct steering behaviour as well as shortened distance between the axles bring great advantages on this route. The bus is very manoeuvrable, and the three tonnes of batteries is hardly noticeable in cornering situations,” explains driving expert Heinrich Degenhart from MAN ProfiDrive. And when things get particularly tight and twisty, the small electric bus is helped by modern safety systems such as ESP, active warning turn assist, daylight-bright LED headlights or the optional camera-based MAN OptiView mirror replacement system.




Downhill recuperation brings back large amounts of energy
The drive up the Gardena Pass (2,121 metres) is particularly twisty, and here, the “midibus” shows all its skills, taking on every hairpin, no matter how tight, with effortless ease. On the following nine-kilometre descent to Corvara, the bus recuperates large amounts of energy, such that its battery is almost fully charged again – with peak charging values of over 200 kW. After three days of testing and a total of 531 kilometres of driving with countless bends – with the lowest point at 523 metres (Klausen), and the highest at 2,168 metres (Passo Valparola) – there is almost no difference in energy consumption on this uphill and downhill journey compared to a classic public transport round trip on level ground: it averages 0.77 kilowatts per kilometre at the finish.

Efficient and reliable
The MAN Lion’s City 10 E masters this demanding route, past rugged mountain ranges and lush green alpine meadows, efficiently and reliably. And proves to be a fully-fledged member of the family – after all, its big brother the MAN Lion’s City 12 E completed the roughly 2,500-kilometre route from Munich to Limerick in Ireland like it was on rails during the “Electrifying Europe Tour 2022”. “After this demanding tour of the Dolomites, I am completely satisfied with our new MAN Lion’s City 10 E. The bus meets all the criteria we envisaged when we developed it. It is efficient, comfortable, extremely manoeuvrable and therefore the perfect companion on demanding routes,” sums up Heinz Kiess, Head of Product Marketing Bus at MAN Truck & Bus.
